The industry is facing a continuous digitization process, for this reason the generation of an updated digital twin of industrial plants is key to making the pertinent operational decisions.
A3D has developed a reverse engineering process that consists of the digital reconstruction of industrial assets.
A methodology that makes it possible to identify critical points and establish an action plan to accompany the client in the digital control of their plant.
Data Capture
Using laser equipment, we obtain a point cloud with millimeter precision that serves as the basis for the development of the BIM model.

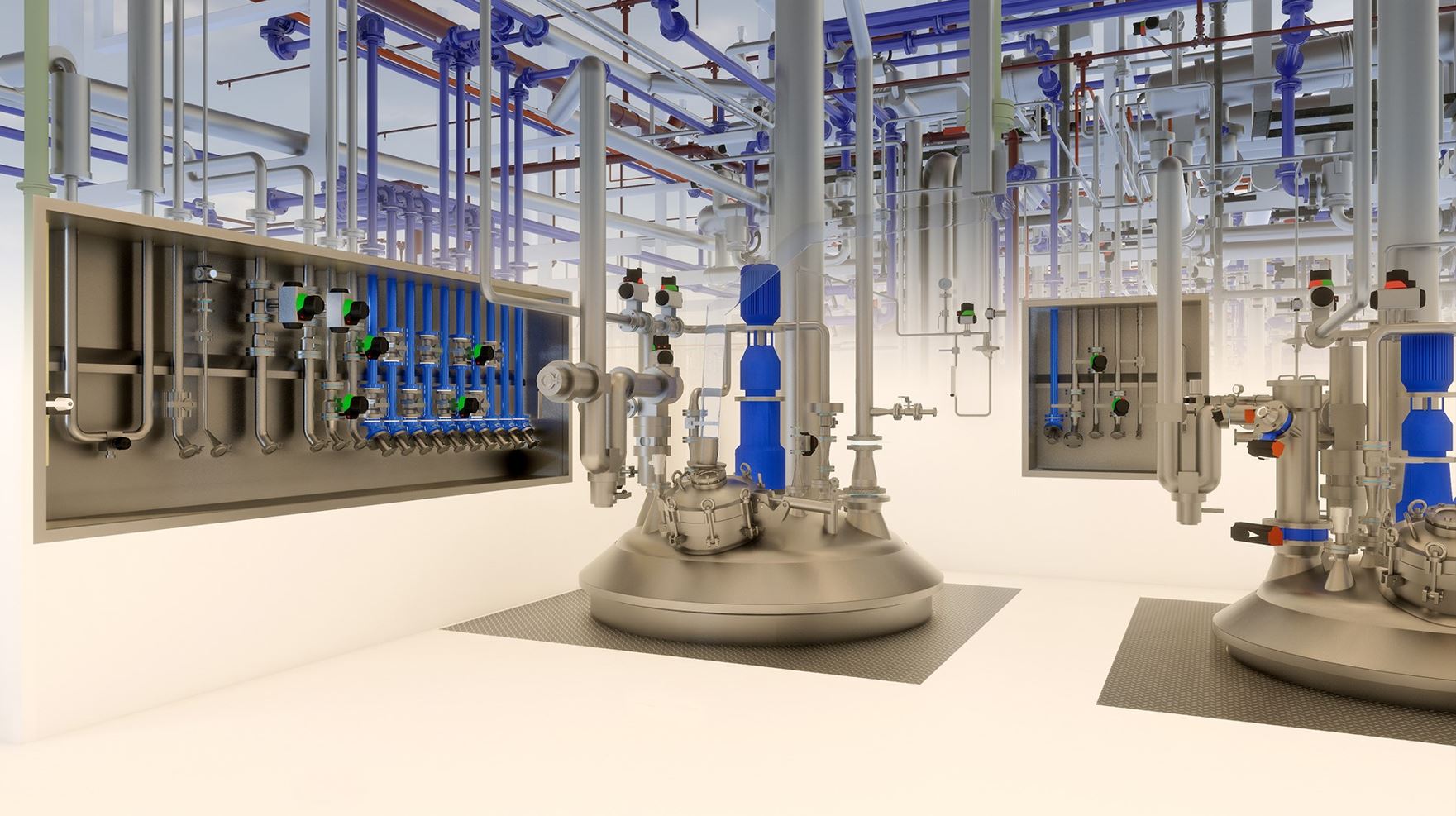

BIM digital model generation
We interpret the existing documentation (plans, p&Id), we compare them with the reality of the point cloud and we elaborate the BIM model.
Link to maintenance programs
We detect the input bridges between the CMMS programs and the BIM model and we establish a matrix of connection codes between both systems.
Standardization
Finally, we develop BIM specifications, templates, processes and standardize to guarantee the continuity of the investment.
